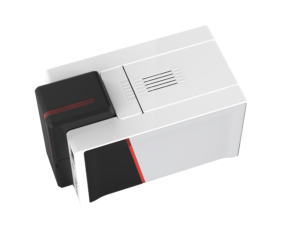

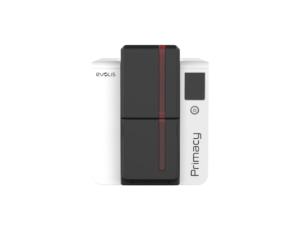

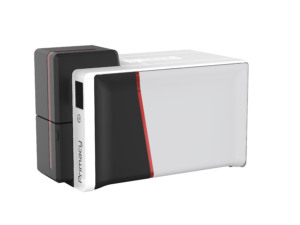

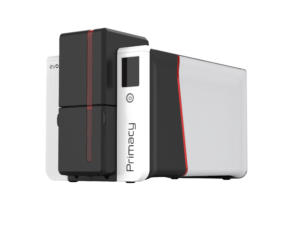

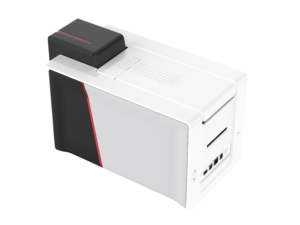

Primacy2 card printer

  • GENERAL FEATURES
    ∙ Color sublimation directly on the card and resin thermal
    transfer
    ∙ Rewritable card printing
    ∙ Single or double-sided print module
    ∙ Print resolution:
    – In color and monochrome: 300×300 dpi & 300×600 dpi
    – In monochrome: 300×1200 dpi
    ∙ Print optimization via color profile
    ∙ User interface: LED panel or LCD touch screen

https://www.evolis.com/wp-content/uploads/2021/12/brochure-primacy2-kb-prm2-1000-eng-a4-a0.pdf

Category: .
  • PRINT SPEED
    ∙ Single-sided (YMCKO): up to 280 cards/hour
    ∙ Double-sided (YMCKOK): 170 cards/hour
    ∙ Single-sided (YMCK) with lamination module: up to 215
    cards/hour
    CARD MANAGEMENT AND SPECIFICATIONS
    ∙ Feeder capacity: 100 cards (0.76 mm – 30 mil)
    ∙ Hopper capacity: 100 cards (0.76 mm – 30 mil)
    ∙ Rear hopper capacity: 50 cards (0.76 mm – 30 mil)2
    ∙ Card types: PVC cards, composite PVC cards, PET cards, ABS
    cards, and rewritable card
    PORTS/CONNECTIVITY
    ∙ USB (cable supplied) and Ethernet
    ∙ Wireless connection 802.11b/g on Wireless range
    EVOLIS HIGH TRUST® RIBBONS
    To maximize the quality and lifetime of the printed cards, the
    service life of the print head, and the overall reliability of your
    printer, use Evolis High Trust® ribbons.
    ∙ Automatic recognition and setup
    ∙ Ribbon cassettes for one-step installation or an EASY4PRO
    offer without cassette for users who want to reduce their
    environmental impact.
    – YMCKO: 300 prints per roll
    – YMCKOK: 200 prints per roll
    – YMCKOO: 250 prints per roll
    – Black monochrome: 2000 prints per roll1
    List of ribbons available at www.evolis.com
    LAMINATION (OPTION)
    ∙ Standard single and double-sided
    ∙ Extensive laminate offering: patches (600 sides per roll) and
    varnishes (1,200 sides per roll), with or without hologram,
    alternate laminates (contact chip cut-out / magnetic stripe
    cut-out).
    List of laminates available at www.evolis.com
    OPTIONS INTEGRATED ON SITE
    ∙ Double-sided activation key
    ∙ 200-card feeder
    ∙ LCD touch screen
    ∙ Lamination module
    SECURITY
    ∙ Kensington® security lock
    ∙ Optional mechanical locking system
    ∙ Print head protection during maintenance or ribbon
    changes
    ∙ Erasing sensitive data from the printer memory
    ∙ Kineclipse® optional
    ∙ Optional internal scanner reader
    ENCODING MODULES
    – Magnetic stripe encoder ISO 7811
    – Contact smartcard encoders
    – Contactless smartcard encoders
    – Dual smartcard encoders (contact / contactless)
    ∙ Options can be combined
    ∙ Factory or on-site installation
    SOFTWARE
    ∙ Printer management by Evolis Premium Suite for Windows,
    Mac, and Linux
    ∙ Evolis SDK available for easy product integration
    ∙ Supplied with cardPresso XXS for designing and printing
    badges
    OS compatibility list available at www.evolis.com
    WARRANTY CONDITIONS
    ∙ 3 years for the printer
    ∙ Optional extended warranty availabl
