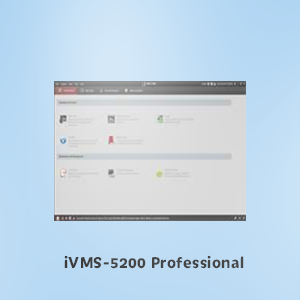

iVMS-5200 Professional

. Integration with Access Control, POS, Parking Lot and other systems

• Intuitive GUI

• Free DDNS and customizable service

Category: .

1. Introduction

Today, video security systems are increasingly important in business environments, such as those found in casinos, retail stores and railway stations, banks and financial institutions, cities and metropolitan areas, government institutions, hospitals, large corporations, petrochemical and utility companies, and schools, colleges and universities. These organizations need robust and resilient video management software (VMS) to ensure that video is available for viewing, event identification and verification, multi-agency collaboration and investigation at all times. The VMS must ensure maximum system uptime for increased situational awareness and compliance.

iVMS-5200 is an intelligent Video Management System that offers an easy-to-use, highly reliable and feature-rich platform for security management, centralized video analytics, and open integration. By supporting a wide range of industry-leading CCTV equipment, iVMS-5200 easily adapts to the growing global demand for better and more robust security

undefined





2. Comparison

iVMS Professional Suite

undefined

3. Download

We provide a free trial version of iVMS-5200 Professional on our website, it is availa
ble on  http://overseas.hikvision.com/en/Tools_84.html

Related Products

  • SAMSUNG CAMERA (SCO-2120R)

    The SCO-2120R from Samsung features the W-V DSP chipset to deliver dvanced functionality such as 600TVL resolution, coaxial control compatibility, Samsung SuperDynamic Range (SSDR) and third generation Samsung Super Noise Reduction (SSNRIII), which eliminates image noise in low light conditions without creating motion blur or ghosting.

    Complete with a 12x zoom lens, the SCO-2120R benefits from timed resets to enable the zoom function to operate automatically at pre-determined times during the day. This can be set-up effortlessly via the coaxial cable from a compatible DVR.
    The SCO-2120R is housed in a full weatherproof casing rated to IP66 with integrated sunshield and supplied with a mounting bracket that allows the camera to be installed either wall, surface or ceiling mount to ensure the required field of view can be obtained every time.• 12x optical zoom (3.9 ~ 46mm)
    • Equipped with high performance Adaptive Illumination IR LEDs
    • 70m monitoring range
    • Dustproof & waterproof integrated camera housing rated to IP66

    Read moreShow details

  • DS-2CE16C2P(N)-IT3

    Camera
    Image Sensor: | 1/3” PICADIS
    Signal System: | PAL/NTSC
    Effective Pixels: | 1280 (H) × 960 (V)
    Min. Illumination: | 0.1Lux @ (F1.2,AGC ON),0 Lux with IR
    0.3Lux @ (F2.3,AGC ON),0 Lux with IR
    Shutter Time: | 1/25(1/30) s to 1/25,000(1/30,000) s
    Lens: | 12mm @ F1.8 (3.6mm,6mm,8mm,16mm optional)
    Angle of view: 22.72° (12mm)
    Lens Mount: | M12
    Day& Night: | IR cut filter with auto switch
    Horizontal Resolution: | 720TVL
    Synchronization: | Internal Synchronization
    Video Output: | 1Vp-p Composite Output (75Ω/BNC)
    S/N Ratio: | More than 62 dB
    General
    Operating Conditions: | -40 °C – 60 °C (-40 °F – 140 °F)
    Humidity 90% or less (non-condensing)
    Power Supply: | 12 V DC±10%
    Power Consumption: | Max.5 W
    Weather Proof: | IP66
    IR Range: | Approx 30 to 40 meters
    Dimension: | 99.9×87.8×157.3 mm (3.93” × 3.46” × 6.20”)
    Weight: | 700 g (1.544 lbs)
    Read moreShow details

  • DS-2CD2132-I

    Camera
    Image Sensor: | 1/3″ Progressive Scan CMOS
    Min. Illumination: | 0.07Lux @ (F1.2, AGC ON) ,0 Lux with IR
    Shutter time: | 1/3 s to 1/100,000 s
    Lens: | 4mm@ F2.0 (2.8mm, 6mm, 12mm optional)
    2048 × 1536:
    Angle of view: 86°(2.8mm), 70°(4mm), 43.3°(6mm), 20.6°(12mm)
    1920 × 1080:
    Angle of view: 98.5°(2.8mm), 79°(4mm), 49°(6mm), 23.2°(12mm)
    Lens Mount: | M12
    Adjustment Range: | Pan:0° – 355°, Tilt: 0° – 65°
    Day& Night: | IR cut filter with auto switch
    Wide Dynamic Range: | Digital WDR
    Digital noise reduction: | 3D DNR
    Compression Standard
    Video Compression: | H.264/MJPEG
    Bit Rate: | 32Kbps~12Mbps
    Dual Stream: | Yes
    Max. Image Resolution: | 2048×1536
    Frame Rate: | 50Hz: 20fps (2048 × 1536), 25fps (1920 × 1080), 25fps (1280 × 720)
    60Hz: 20fps (2048 × 1536), 30fps (1920 × 1080), 30fps (1280 × 720)
    Image Settings: | Rotate mode, Saturation, Brightness, Contrast adjustable by client software or web browser
    BLC: | Yes, zone configurable
    ROI: | Support
    Network
    Network Storage: | NAS (Support NFS,SMB/CIFS)
    Alarm Trigger: | Line Crossing, Intrusion Detection, Motion detection, Dynamic analysis, Tampering alarm, Network disconnect , IP address conflict, Storage exception
    Protocols: | TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP,
    PPPoE,NTP,UPnP,SMTP,SNMP,IGMP,802.1X,QoS,IPv6,Bonjour
    Security: | User Authentication, Watermark, IP address filtering, anonymous access, flickerless, heartbeat, video mask
    System Compatibility: | ONVIF (Profile S, Profile G), PSIA, CGI, ISAPI
    Interface
    Communication Interface: | 1 RJ45 10M / 100M ethernet interface
    General
    Operating Conditions: | -30 °C ~ 60 °C (-22 °F ~ 140 °F)
    Humidity 95% or less (non-condensing)
    Power Supply: | 12 VDC ± 10%, PoE (802.3af)
    Power Consumption: | Max. 5 W (Max. 7 W with IR cut filter on)
    Impact Protection: | IK08 Protection Level
    Weather Proof: | IP66
    IR Range: | Approx. 10 to 30 meters
    Dimensions: | Φ111 × 82 (4.4” × 3.2”)
    Weight: | 500g (1.1 lbs)
    Read moreShow details

  • DS-2CC12A1P(N)-AVFIR3

    Camera
    Image Sensor: | 1/3” SONY CCD
    Signal System: | PAL/NTSC
    Effective Pixels: | PAL: 976 (H) × 582 (V)
    NTSC: 976 (H) × 494 (V)
    Min. Illumination: | 0.001Lux @ (F1.2,AGC ON) ,0 Lux with IR
    0.0014Lux @ (F1.4,AGC ON),0 Lux with IR
    Shutter Time: | 1/50(1/60)s to 1/100,000s
    Lens: | 2.8 – 12 mm @ F1.4
    Angle of view: 80° – 27.2°
    Lens Mount: | φ14
    Auto Iris: | DC Drive
    Adjustment Range: | Pan: 0 – 360°, Tilt: 0 – 75°, Rotation: 0 – 360°
    Day& Night: | IR cut filter with auto switch
    Horizontal Resolution: | 700 TVL
    Wide Dynamic Range: | Digital
    Synchronization: | Internal/Power synchronization
    Video Output: | 1Vp-p Composite Output (75Ω/BNC);
    Test Monitor OUT [1Vp-p Composite Output (75Ω/BNC),Device Line]
    S/N Ratio: | More than 62 dB
    Menu
    Camera ID: | On / Off (52 letters, position adjustable)
    D/N Mode: | Auto / Day / Night / EXT1 / EXT2
    Auto White Balance: | ATW/Push/User1/User2/Anti CR/Manual/Push lock
    Private Mask: | On/Off, maximum 8 zones
    Motion Detection: | ON/Off
    BLC: | BLC/HLC/Off
    Eclipse: | On / off
    Language: | English/Chinese/ Korean/ Italian/ Russian/ Portuguese/ German/ French
    General
    Operating Conditions: | -10 °C – 60 °C (14 °F – 140 °F)
    Humidity 90% or less (non-condensing)
    Power Supply: | 12 V DC ± 10%, 24 V AC ± 10%
    Power Consumption: | Max. 7.5 W
    (Max. 8 W with IR cut filter on)
    Weather Proof: | IP66
    IR Range: | Approx 30 to 40 meters
    Dimension: | 88 × 89.4 × 257.7mm(φ 3.46” x 3.52” x 10.15”)
    Weight: | 1350g (2.97 lbs)
    Read moreShow details
