| Video/Audio Input | ||
|---|---|---|
| IP video input: | | | 32-ch |
| Two-way audio input: | | | 1-ch, BNC(2.0 Vp-p, 1kΩ) |
| Network | ||
| Incoming bandwidth: | | | 200Mbps |
| Outgoing bandwidth: | | | 160Mbps |
| Remote connection: | | | 128 |
| Video/Audio Output | ||
| CVBS Output: | | | 1-ch, BNC(1.0Vp-p, 75Ω) Resolution: 704×576(PAL); 704×480(NTSC) |
| HDMI Output: | | | 1-ch, resolution: 1920*1080P/60Hz, 1920*1080P/50Hz, 1600*1200/60Hz, 1280*1024/60Hz, 1280*720/60Hz, 1024*768/60Hz |
| VGA Output: | | | 1-ch, resolution: 1920*1080P/60Hz, 1600*1200/60Hz, 1280*1024/60Hz, 1280*720/60Hz, 1024*768/60Hz |
| Recording Resolution: | | | 5MP/3MP/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| Audio Output: | | | 2-ch, BNC(Linear Electrical Level, 600Ω) |
| Synchronous Playback: | | | 16-ch |
| Decoding | ||
| Live view / Playback: | | | 5MP/3MP/1080P /UXGA /720P /VGA /4CIF /DCIF /2CIF /CIF /QCIF |
| Capability: | | | 16-ch@720P, 8-ch@1080P |
| Hard Disk | ||
| SATA: | | | 4 SATA interfaces for 2 HDDs + 1 DVD-R/W (default), or 4HDDs |
| Interface Type: | | | 1 eSATA interface |
| Capacity: | | | Up to 4TB capacity for each HDD |
| External Interface | ||
| Network Interface: | | | 1RJ-45 10/100/1000Mbps self-adaptive Ethernet interface |
| Serial Interface: | | | RS-232, 1 RS-485, Keyboard |
| USB Interface: | | | 3, USB2.0 |
| Alarm In: | | | 16-ch |
| Alarm Out: | | | 4-ch |
| POE | ||
| Interface: | | | 16 independent 100 Mbps PoE network interfaces |
| Max. Power: | | | 200W |
| Supported Standard: | | | AF and AT |
| General | ||
| Power Supply: | | | 100 ~ 240 VAC, 6.3 A, 50 ~ 60 Hz |
| Consumption(without hard disk and POE): | | | ≤ 45W |
| Working Temperature: | | | -10 ºC ~ +55 ºC (+14 ºF~ + 131 ºF) |
| Working Humidity: | | | 10 % ~ 90 % |
| Chassis: | | | 19-inch rack-mounted 1.5U chassis |
| Dimensions: | | | 445 × 390 ×70 mm ( 17.5″ × 15.3″ × 2.8″) |
| Weight(without HDD): | | | ≤ 4 Kg (8.8 lb) |

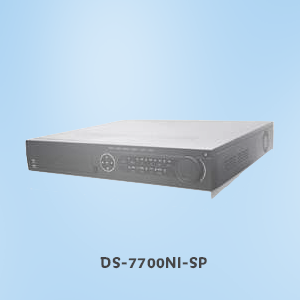

DS-7700NI-SP
DS-7700NI-SP Series NVR
