• Up to 1.3 megapixel (1280 x 960) resolution
• HD real-time video
• Vari-focal lens
• IR LEDs (up to 30m)
• DWDR & 3D DNR & BLC
• IP66
• Support onboard storage (up to 64GB)
• (-S) Audio I/O, Alarm I/O

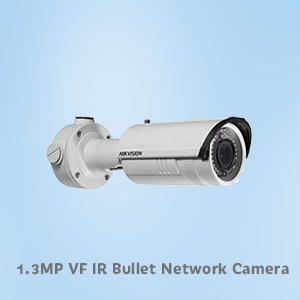

1.3MP VF IR Bullet Network Camera
DS-2CD2612F-I
Related Products
-
DS-2CD2132-I
Camera Image Sensor: | 1/3″ Progressive Scan CMOS Min. Illumination: | 0.07Lux @ (F1.2, AGC ON) ,0 Lux with IR Shutter time: | 1/3 s to 1/100,000 s Lens: | 4mm@ F2.0 (2.8mm, 6mm, 12mm optional)
2048 × 1536:
Angle of view: 86°(2.8mm), 70°(4mm), 43.3°(6mm), 20.6°(12mm)
1920 × 1080:
Angle of view: 98.5°(2.8mm), 79°(4mm), 49°(6mm), 23.2°(12mm)Lens Mount: | M12 Adjustment Range: | Pan:0° – 355°, Tilt: 0° – 65° Day& Night: | IR cut filter with auto switch Wide Dynamic Range: | Digital WDR Digital noise reduction: | 3D DNR Compression Standard Video Compression: | H.264/MJPEG Bit Rate: | 32Kbps~12Mbps Dual Stream: | Yes Image Max. Image Resolution: | 2048×1536 Frame Rate: | 50Hz: 20fps (2048 × 1536), 25fps (1920 × 1080), 25fps (1280 × 720)
60Hz: 20fps (2048 × 1536), 30fps (1920 × 1080), 30fps (1280 × 720)Image Settings: | Rotate mode, Saturation, Brightness, Contrast adjustable by client software or web browser BLC: | Yes, zone configurable ROI: | Support Network Network Storage: | NAS (Support NFS,SMB/CIFS) Alarm Trigger: | Line Crossing, Intrusion Detection, Motion detection, Dynamic analysis, Tampering alarm, Network disconnect , IP address conflict, Storage exception Protocols: | TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP,
PPPoE,NTP,UPnP,SMTP,SNMP,IGMP,802.1X,QoS,IPv6,BonjourSecurity: | User Authentication, Watermark, IP address filtering, anonymous access, flickerless, heartbeat, video mask System Compatibility: | ONVIF (Profile S, Profile G), PSIA, CGI, ISAPI Interface Communication Interface: | 1 RJ45 10M / 100M ethernet interface General Operating Conditions: | -30 °C ~ 60 °C (-22 °F ~ 140 °F)
Humidity 95% or less (non-condensing)Power Supply: | 12 VDC ± 10%, PoE (802.3af) Power Consumption: | Max. 5 W (Max. 7 W with IR cut filter on) Impact Protection: | IK08 Protection Level Weather Proof: | IP66 IR Range: | Approx. 10 to 30 meters Dimensions: | Φ111 × 82 (4.4” × 3.2”) Weight: | 500g (1.1 lbs) -
DS-2CC11A2P-IRA
Camera Image Sensor: | 1/3” SONY CCD Signal System: | PAL Effective Pixels: | PAL: 976 (H) × 582 (V)
NTSC: 976 (H) × 494 (V)Min. Illumination: | 0.001 [email protected], AGC on, 0 lux with IR
0.0014 [email protected], AGC on, 0 lux with IRShutter Time: | 1/50s to 1/100,000s Lens: | 25mm @F1.4 (16mm optional)
Angle of view: 13.5° (25mm)Lens Mount: | CS mount Day& Night: | Electronic Horizontal Resolution: | 700 TVL Synchronization: | Internal Synchronization Video Output: | 1Vp-p Composite Output (75Ω/BNC) S/N Ratio: | More than 62 dB BLC: | On General Operating Conditions: | -30 °C ~ 60 °C (-22 °F ~ 140 °F)
Humidity 90% or less (non-condensing)Power Supply: | 24 V AC ± 10% Power Consumption: | Max. 15 W Weather Proof: | IP66 IR Range: | Approx 100 to 110 meters Dimension: | 116.8 × 97.3 × 255.1mm (4.60” × 3.83” × 10.04”) Weight: | 2500g (5.50 lbs) -
DS-2CE16C2P(N)-IT3
Camera Image Sensor: | 1/3” PICADIS Signal System: | PAL/NTSC Effective Pixels: | 1280 (H) × 960 (V) Min. Illumination: | 0.1Lux @ (F1.2,AGC ON),0 Lux with IR
0.3Lux @ (F2.3,AGC ON),0 Lux with IRShutter Time: | 1/25(1/30) s to 1/25,000(1/30,000) s Lens: | 12mm @ F1.8 (3.6mm,6mm,8mm,16mm optional)
Angle of view: 22.72° (12mm)Lens Mount: | M12 Day& Night: | IR cut filter with auto switch Horizontal Resolution: | 720TVL Synchronization: | Internal Synchronization Video Output: | 1Vp-p Composite Output (75Ω/BNC) S/N Ratio: | More than 62 dB General Operating Conditions: | -40 °C – 60 °C (-40 °F – 140 °F)
Humidity 90% or less (non-condensing)Power Supply: | 12 V DC±10% Power Consumption: | Max.5 W Weather Proof: | IP66 IR Range: | Approx 30 to 40 meters Dimension: | 99.9×87.8×157.3 mm (3.93” × 3.46” × 6.20”) Weight: | 700 g (1.544 lbs) -
DS-2CD4032FWD-(A)(P)(W)
Camera Image Sensor: | 1/3″ Progressive Scan CMOS Signal System: | PAL/NTSC Min. Illumination: | Color: 0.1 Lux @ (F1.2, AGC ON)
B/W: 0.01 Lux @ (F1.2, AGC ON)Shutter time: | 1 s to 1/100,000 s Lens Mount: | C/CS mount Auto Iris: | DC drive(-P: support P-Iris) Day& Night: | IR cut filter with auto switch Wide Dynamic Range: | 120 dB Digital noise reduction: | 3D DNR Focus: | ABF(-A model) Compression Standard Video Compression: | H.264/MPEG4/MJPEG Bit Rate: | 32Kbps~16Mbps Audio Compression: | G.711/G.722.1/G.726/MP2L2 Triple Streams: | Yes Image Max. Image Resolution: | 2048×1536 Frame Rate: | 50Hz: 20fps (2048 × 1536), 25fps (1920 × 1080), 25fps (1280 × 720)
60Hz: 20fps (2048 × 1536), 30fps (1920 × 1080), 30fps (1280 × 720)Third Stream: | Independent with Main Stream and Sub Stream, up to
50Hz: 20fps (2048 × 1536)
60Hz: 20fps (2048 × 1536)Image Settings: | Rotate mode, Saturation, Brightness, Contrast adjustable by client software or web browser BLC: | Support Smart Defog: | Support EIS: | Support ROI: | Support Picture Overlay: | 128 × 128, BMP 24bit, zone configurable Network Network Storage: | NAS (Support NFS,SMB/CIFS) Alarm Trigger: | Line crossing detection, Intrusion detection, Defocus detection, Scene change detection, Motion detection, Face detection, Dynamic analysis, Tampering alarm, Network disconnect, IP address conflict, Storage exception Protocols: | TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP,
PPPoE,NTP,UPnP,SMTP,SNMP,IGMP,802.1X,QoS,IPv6,Bonjour(SIP optional)Security: | User Authentication, Watermark, IP address filtering, anonymous access, flickerless, heartbeat, video mask System Compatibility: | ONVIF (Profile S, Profile G), PSIA, CGI, ISAPI Interface Audio Input: | 1-ch 3.5 mm audio interface, Mic in/Line in. 1 built-in Microphone Audio Output: | 1-ch 3.5mm audio interface (line level, 600 Ω) Communication Interface: | 1 RJ45 10M/100M Ethernet port, 1 RS-485 interface and 1 RS-232 interface Alarm Input: | 1 Alarm Output: | 1 Video Output: | 1Vp-p Composite Output (75 Ω, BNC) On-board storage: | Built-in Micro SD/SDHC/SDXC card slot, up to 64 GB Reset Button: | Yes Wi-Fi Specification (-W) Wireless Standards: | IEEE802.11b, 802.11g, 802.11n Frequency Range: | 2.4 GHz ~ 2.4835 GHz Channel Bandwidth: | 20/40MHz Support Modulation Mode: | 802.11b: CCK, QPSK, BPSK
802.11g/n: OFDMSecurity: | 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK, WPS Transmit Power: | 11b: 17±1.5dBm @ 11Mbps
11g: 14±1.5dBm @ 54Mbps
11n: 12.5±1.5dBmReceive Sensitivity: | 11b: -90dBm @ 11Mbps (Typical)
11g: -75dBm @ 54Mpbs (Typical)
11n: -74dBm (Typical)Transmission Rate: | 11b: 11Mbps
11g: 54Mbps
11n: up to 150MbpsWireless Range: | 50m(depend on environment) General Operating Conditions: | -30 °C ~ 60 °C (-22 °F ~ 140 °F)
Humidity 95% or less (non-condensing)Power Supply: | 24V AC, ±10% / 12V DC, ±10% , PoE(Power Over Ethernet) Power Consumption: | Max. 6.5 W (Max. 9.5 W with IR cut filter on)
-W: Max. 7.5 W (Max. 10.5W with IR cut filter on)Dimensions: | 69.8×58×145 mm (2.68” × 2.56” × 5.70”) Weight: | 830 g (1.83 lbs)
