•1/3″ Progressive Scan CMOS•1280 x 960 HD resolution•20x optical zoom, 16x digital zoom•True Day/Night, 3D DNR, Digital WDR•3D intelligent positioning
•Support 24VAC/PoE+ power supply

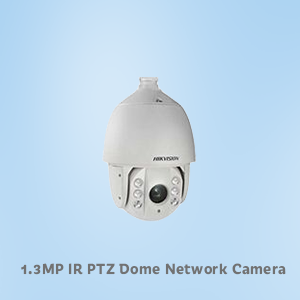

1.3MP IR PTZ Dome Network Camera
DS-2DE7174-A
Related Products
-
DS-2CD2032-I
Camera Image Sensor: | 1/3″ Progressive Scan CMOS Signal System: | PAL/NTSC Min. Illumination: | 0.07Lux @ (F1.2, AGC ON), 0 Lux with IR Shutter time: | 1/3 s to 1/100,000 s Lens: | 4mm@ F2.0 (6mm, 12mm optional)
2048 × 1536:
Angle of view: 70°(4mm), 43.3°(6mm), 20.6°(12mm)
1920 × 1080:
Angle of view: 79°(4mm), 49°(6mm), 23.2°(12mm)Lens Mount: | M12 Auto Iris: | DC drive Day& Night: | IR cut filter with auto switch Wide Dynamic Range: | Digital WDR Digital noise reduction: | 3D DNR Compression Standard Video Compression: | H.264/MJPEG Bit Rate: | 32Kbps~12Mbps Dual Stream: | Yes Image Max. Image Resolution: | 2048×1536 Frame Rate: | 50Hz: 20fps (2048 × 1536), 25fps (1920 × 1080), 25fps (1280 × 720)
60Hz: 20fps (2048 × 1536), 30fps (1920 × 1080), 30fps (1280 × 720)Image Settings: | Rotate mode, Saturation, Brightness, Contrast adjustable by client software or web browser BLC: | Yes, zone configurable ROI: | Support Network Network Storage: | NAS (Support NFS,SMB/CIFS) Alarm Trigger: | Line Crossing, Intrusion Detection, Motion detection, Dynamic analysis, Tampering alarm, Network disconnect , IP address conflict, Storage exception Protocols: | TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP,
PPPoE,NTP,UPnP,SMTP,SNMP,IGMP,802.1X,QoS,IPv6,BonjourSecurity: | User Authentication, Watermark, IP address filtering, anonymous access, flickerless, heartbeat, video mask System Compatibility: | ONVIF (Profile S, Profile G), PSIA, CGI, ISAPI Interface Communication Interface: | 1 RJ45 10M / 100M ethernet interface Reset Button: | Yes General Operating Conditions: | -30 °C ~ 60 °C (-22 °F ~ 140 °F)
Humidity 95% or less (non-condensing)Power Supply: | 12 VDC ± 10%, PoE (802.3af) Power Consumption: | Max. 5 W (Max. 7 W with IR cut filter on) Weather Proof: | IP66 IR Range: | -I: Approx 20 to 30 meters(65.6-98.4ft) Dimensions: | 60.4×76.9×139.28 mm (2.4” × 3.0” × 5.5”) Weight: | 500g (1.1 lbs) -
DS-2CD6026FHWD-(A)
Camera Image Sensor: | 1/1.8″ Progressive Scan CMOS Signal System: | PAL/NTSC Min. Illumination: | Color: 0.001 Lux @ (F1.2, AGC ON)
B/W: 0.0001 Lux @ (F1.2, AGC ON)Shutter time: | 1/1 s to 1/100,000 s Lens Mount: | C/CS mount Auto Iris: | DC drive Day& Night: | IR cut filter with auto switch Wide Dynamic Range: | 120 dB Digital noise reduction: | 3D DNR Focus: | ABF(-A model) Compression Standard Video Compression: | H.264/MPEG4/MJPEG Bit Rate: | 32Kbps~16Mbps Audio Compression: | G.711/G.722.1/G.726/MP2L2 Triple Streams: | Yes Image Max. Image Resolution: | 1920 x 1080 Frame Rate: | WDR OFF:
50Hz:50fps(1920×1080), 50fps(1280×960), 50fps(1280×720)
60Hz: 60fps(1920×1080), 60fps(1280×960), 60fps(1280×720)
WDR ON:
50Hz:25fps(1920×1080), 25fps(1280×960), 25fps(1280×720)
60Hz:30fps(1920×1080), 30fps(1280×960), 30fps(1280×720)Third Stream: | Independent with Main Stream and Sub Stream, up to
50Hz: 25fps (1920 × 1080)
60Hz: 30fps (1920 × 1080)Image Settings: | Saturation, brightness, contrast adjustable through client software or web browser BLC: | Support Smart Defog: | Support EIS: | Support ROI: | Support Picture Overlay: | LOGO picture can be overlaid on video with 128×128 24bit bmp format Network Network Storage: | NAS (Support NFS,SMB/CIFS) Alarm Trigger: | Line crossing detection, Intrusion detection, Defocus detection, Scene change detection, Motion detection, Face detection, Dynamic analysis, Tampering alarm, Network disconnect, IP address conflict, Storage exception Protocols: | TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP,
PPPoE,NTP,UPnP,SMTP,SNMP,IGMP,802.1X,QoS,IPv6,BonjourSecurity: | User Authentication, Watermark, IP address filtering, anonymous access, flickerless, heartbeat, video mask System Compatibility: | ONVIF (Profile S, Profile G), PSIA, CGI, ISAPI Interface Audio Input: | 1-ch 3.5 mm audio interface, Mic in/Line in. 1 built-in Microphone Audio Output: | 1-ch 3.5mm audio interface (line level, 600 Ω) Communication Interface: | 1 RJ45 10M/100M Ethernet port, 1 RS-485 interface and 1 RS-232 interface Alarm Input: | 1 Alarm Output: | 1 Video Output: | 1Vp-p Composite Output (75 Ω, BNC) On-board storage: | Built-in Micro SD/SDHC/SDXC card slot, up to 64 GB Reset Button: | Yes General Operating Conditions: | -30 °C ~ 60 °C (-22 °F ~ 140 °F)
Humidity 95% or less (non-condensing)Power Supply: | 24V AC, ±10% / 12V DC, ±10% , PoE(Power Over Ethernet) Power Consumption: | Max. 6 W (Max. 9W with IR cut filter on) Dimensions: | 69.8×58×145 mm (2.68” × 2.56” × 5.70”) Weight: | 830 g (1.83 lbs) -
DS-2AF7268(N)-AW
Camera Image Sensor: | 1/4″ Interline Transfer CCD Effective Pixels: | PAL:976(H)×582(V)
NTSC:976(H)×494(V)Horizontal Resolution: | Color: 700 TVL
B/W: 750 TVLSignal System: | PAL/NTSC Min.illumination: | Color: 0.02Lux/(F1.6, AGC ON),0.0008Lux /(F1.6, AGC ON, IRE×256)
B/W: 0.002Lux/(F1.6, AGC ON),0.00008Lux /(F1.6, AGC ON, IRE×256)
0 Lux with IRWhite Balance: | Auto / Manual / ATW / Indoor / Outdoor AGC: | Auto/Manual S/N Ratio: | ≥ 50dB DNR: | 3D DNR BLC: | ON/OFF Shutter time: | PAL: 1/3 ~ 1/10,000s, NTSC: 1/4 ~ 1/10,000s Day&Night: | ICR Digital Zoom: | 16x Privacy Masking: | 8 privacy masks programmable; a maximum of 8 zones can be masked simultaneously on the same video screen Focus Mode: | Auto / Semi-automatic / Manual Lens Focal Length: | 3.3-119mm, 36X Zoom Speed: | Approx.4.4s(Optical Wide-Tele) Angle of View: | 57.1°-1.7°(Wide-Tele) Aperture Range: | F1.4 – F4.2 Pan & Tilt Pan Range: | 360° endless Pan Speed: | Pan Manual Speed: 0.1° -160°/s,
Pan Preset Speed: 240°/sTilt Range: | -2°-90° (Auto Flip ) Tilt Speed: | Tilt Manual Speed: 0.1°-120°/s,
Tilt Preset Speed: 200°/sProportional Zoom: | Rotation speed can be adjusted automatically according to zoom multiples Number of Preset: | 256 Patrol: | 8 patrols, up to 32 presets per patrol Pattern: | 4 patterns, with the total recording time not less than 10 minutes Power-off Memory: | Support Park Action: | Preset / Patrol / Pattern / Pan scan / Tilt scan / Frame Scan / Random scan / Panorama scan PTZ Position Display: | ON/OFF Freeze Frame: | Support Password Protection: | Support Zone Scanning/Display: | Scanning within programmed zone, display zone title Camera Title: | Programmable title display Compass: | Support , the north can be set Scheduled Task: | Preset / Patrol / Pattern / Pan scan / Tilt scan / Random scan / Frame scan / Panorama scan RS-485 communication diagnosis: | Including failure information, e.g., wrong address, baud rate errors, et., displayed on the video screen in text Manchester code communication diagnosis: | Including failure information, e.g., wrong address, baud rate errors, et., displayed on the video screen in text Smart-tracking: | Support Infrared IR Range: | 150m IR irradiation angle: | Adjustable by zoom Alarm Alarm Input: | 2 inputs(7 inputs optional) Alarm Output: | 2 relay outputs, alarm response actions option Input & Output Monitor Output: | 1.0V[p-p] / 75Ω, NTSC (or PAL) composite, BNC General Menu Language: | English / Chinese RS-485 Protocols: | HIKVISION, Pelco-P, Pelco-D, self-adaptive Power Supply: | 24V AC Power Consumption: | Max. 52W Working Temperature /Humidity: | -30 ℃-65℃(-22℉-149℉)(outdoor dome)
90% or lessProtection Level: | IP66 standard (outdoor dome)
TVS 4,000V lightning protection, surge protection and voltage transient protectionWiper: | Support Mounting: | Various mounting modes option Dimensions: | Φ245 ×399mm (Φ9.65” ×15.71” ) (Outdoor) Weight(approx.): | 5.5kg(12.13Ibs) Mount Option: | Long-arm wall mount: DS-1601ZJ; Corner mount: DS-1633ZJ; Pole Mount: DS-1622ZJ; Power box mount:DS-1634ZJ -
DS-2CC11A7P(N)-A(-C)
Camera Image Sensor: | 1/3″ SONY Super HAD CCD II Signal System: | PAL/NTSC Effective Pixels: | PAL: 976 (H) × 582 (V)
NTSC: 976 (H) × 494 (V)Min. Illumination: | Color: 0.001 Lux @ (F1.2, AGC ON),
0.0001 Lux @ (F1.2, AGC ON, sensitivity × 512)
B/W: 0.0001 Lux @ (F1.2, AGC ON),
0.00001 Lux @ (F1.2, AGC ON, sensitivity × 512)Shutter Time: | 1/50(1/60)s to 1/100,000s Lens Mount: | C/CS Mount Auto Iris: | DC/Video Drive Day& Night: | IR cut filter with auto switch Wide Dynamic Range: | 75dB Synchronization: | Internal/Power synchronization Video Output: | 1Vp-p Composite Output (75Ω/BNC) S/N Ratio: | More than 62 dB Menu Camera ID: | On / off (16 letters, adjusted position) Auto Gain: | Low/Middle/High/Off D/N Mode: | Auto1/Auto2/Day/Night Auto White Balance: | Auto trace WB1/Auto trace WB2/Manual/Auto Control Private Mask: | On / off, maximum 12 zones Motion Detection: | Mode1/Mode2/Off BLC: | Area/Value/Off Eclipse: | On / off WDR: | Value/Contrast/WD exposure compensation/Return Anti-flicker: | On/ Off Language: | English/Chinese Scene: | Indoor standard, Indoor backlight, outdoor, low illumination, IR standard, customize Function: | SMART IR, Eclipse, Digital Noise Reduction, Sharpness, Brightness, Saturation, Resolution, Electronic image stabilization, Digital Zoom, Mirror, Defect Pixel Correction, auto-iris correction General Operating Conditions: | -10 °C – 60 °C (14 °F – 140 °F)
Humidity 90% or less (non-condensing)Power Supply: | 24 V AC ± 10%, 12 V DC ± 10%
(-C series support 100 – 240 V AC)Power Consumption: | Max. 5 W(Max. 10 W with IR cut filter on) Dimension: | 69 x 56 x 113.3 mm (2.72” × 2.20” × 4.46”) Weight: | 400 g (0.88 lbs)
